CONTACT COMPOSITION






APPLICATIONS
Best suited for a wide variety of uses, such as office equipment, telecommunication equipment and audio equipment.



CHARACTERISTICS



HIGH QUALITY AND LOW PRICE
Embodying the so-called "lighter, thinner, shorter and smaller" product concept, TORX MICRO SWITCHES have realized micro-order precision, product miniaturization and cost reduction with our fully automated production lines.



GOOD SNAP ACTION
Leaf springs undergo no bending work load in the production process. So, good snap action ensured and spring characteristics can be utilized to the full. All these innovations have contributed to the high performance and great reliability of TORX MICRO SWITCHES



VARIETY OF TERMINALS
Straight terminal, Right angled terminal, Left angled terminal



RATING



TYPE (contact)

OF(MAX)
RATING
1 Standard type
50g
1A, 125VAC
500mA, 30VDC
2 Micro-load type
50g
50mA
30VDC





SPECIFICATIONS


 ITEM  PERFORMANCE DATA
Service life Mechanical  Over 500,000 cycles
(Switching frequency: 60 cycles/min., O.T. 100%)
Service life Electrical Standard type  Standard OF: Over 30,000 cycles (rated load)
(Switching frequency: 20 cycles/min., O.T. 100%)
Service life Electrical Micro load type Over 100,000 cycles (rated load)
Switching frequency: 20 cycles/min., O.T. 100%)
Insulation resistance Over 100MW
When measured with 500VDC insulation resistance meter)
With-
sstand Voltage
Between non-consecutive terminalsxx
Between each terminal and discharged metal parts
Between each terminal and earth
500VAC, 50/60Hz, 1min.
500VAC, 50/60Hz, 1min.
500VAC, 50/60Hz, 1min.
Vibration resistance Multi amplitude 1.5mm, 10-55Hz
Less than 1 msec. for contact opening)
Impact resistance 50G
less than 1 msec. for contacting opening
Contact resistance less than 15mW (initial value)
Allowable operation speed (non-load) 0.1mm/s-0.5m/s (for push button type)
Maximum switching frequency 60 cycles/min, mechanical
Operating temperature and humidity ranges -25 degree-C to 80 degree-C (not frozen), less than 85% RH
















Operating Characteristics

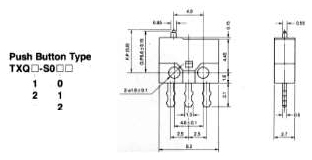

Standard Type
Operating Force MAX (g)

90
Release Force MIN(g)

8
Pre-travel MAX(mm)

0.35
Over-travel MIN(mm)

0.1
Movement Differential MAX (mm)

0.07
Operating Position (mm)

5.6±0.15



Operating Characteristics

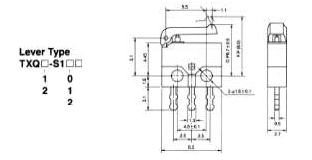

Standard Type
Operating Force MAX (g)

50
Release Force MIN(g)

4
Pre-travel MAX(mm)

1.3
Over-travel MIN(mm)

0.3
Movement Differential MAX (mm)

0.6
Operating Position (mm)

6.7±0.5
