CONTACT COMPOSITION






APPLICATIONS
Best suited for a wide variety of uses, such as office equipment, telecommunication equipment, FDD's, mice, telephone, receivers, home electric appliances and audio equipment.



CHARACTERISTICS



HIGH QUALITY AND LOW PRICE
Embodying the so-called "lighter, thinner, shorter and smaller" product concept, TORX MICRO SWITCHES have realized micro-order precision, product miniaturization and cost reduction with our fully automated production lines.



GOOD SNAP ACTION
Leaf springs undergo no bending work load in the production process. So, good snap action ensured and spring characteristics can be utilized to the full. All these innovations have contributed to the high performance and great reliability of TORX MICRO SWITCHES

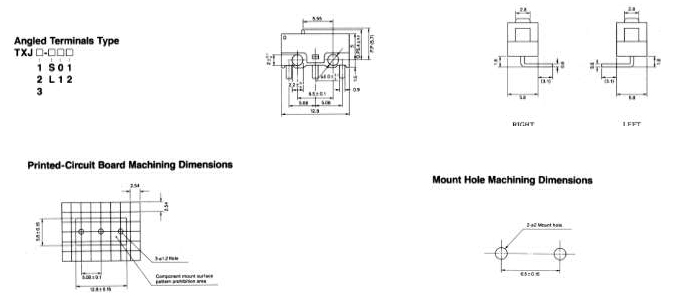

VARIETY OF TERMINALS
Straight terminal, Right angled terminal, Left angled terminal, Fixed terminal
(F Pin type)



RATING



TYPE (contact)

OF (MAX)
RATING
1 Standard type

150g

50g
3A, 125VAC
2A, 30VDC
1A, 30VAC
0.5A, 30VDC
2 Micro-load type

150g

75g
50mA, 30VDC





SPECIFICATIONS


 ITEM  PERFORMANCE DATA
Service life Mechanical  Over 5,000,000 cycles
(Switching frequency: 60 cycles/min., O.T. 100%)
Service life Electrical
Standard type		  Standard OF: Over 50,000 cycles (rated load)
Low capacity OF: Over 100,000 cycles (rated load)
(Switching frequency: 20 cycles/min., O.T. 100%)
Service life Electrical Micro load type Over 500,000 cycles (rated load)
(Switching frequency: 20 cycles/min., O.T. 100%)
Insulation resistance Over 100MW
(When measured with 500VDC insulation resistance meter)
With-stand Voltage
Between non-consecutive terminals
Between each terminal and discharged metal parts
Between each terminal and earth
1,00VAC, 50/60Hz, 1min.
1,500VAC, 50/60Hz, 1min.
1,500VAC, 50/60Hz, 1min.
Vibration resistance Multi amplitude 1.5mm, 10-55Hz
(Less than 1 msec. for contact opening)
Impact resistance 50G
(less than 1 msec. for contacting opening
Contact resistance less than 15mW (initial value)
Allowable operation speed (non-load) 0.1mm/s-0.5m/s (for push button type)
Maximum switching frequency 120 cycles/min, mechanical
Operating temperature and humidity ranges -25 degree-C to 80 degree-C (not frozen), less than 85% RH
























Operating Characteristics

Standard Type

Low capacity Type
Operating Force MAX (g)

150

75
Release Force MIN(g)

20

10
Pre-travel MAX(mm)

0.5
Over-travel MIN(mm)

0.2
Movement Differential MAX (mm)

0.1
Operating Position (mm)

5.4±0.2



Operating Characteristics

Standard Type

Low capacity Type
Operating Force MAX (g)

50

25
Release Force MIN(g)

5

2.5
Pre-travel MAX(mm)

1.8
Over-travel MIN(mm)

0.55
Movement Differential MAX (mm)

0.5
Operating Position (mm)

6.8±0.8
